OA600 High quality net work raised access floor

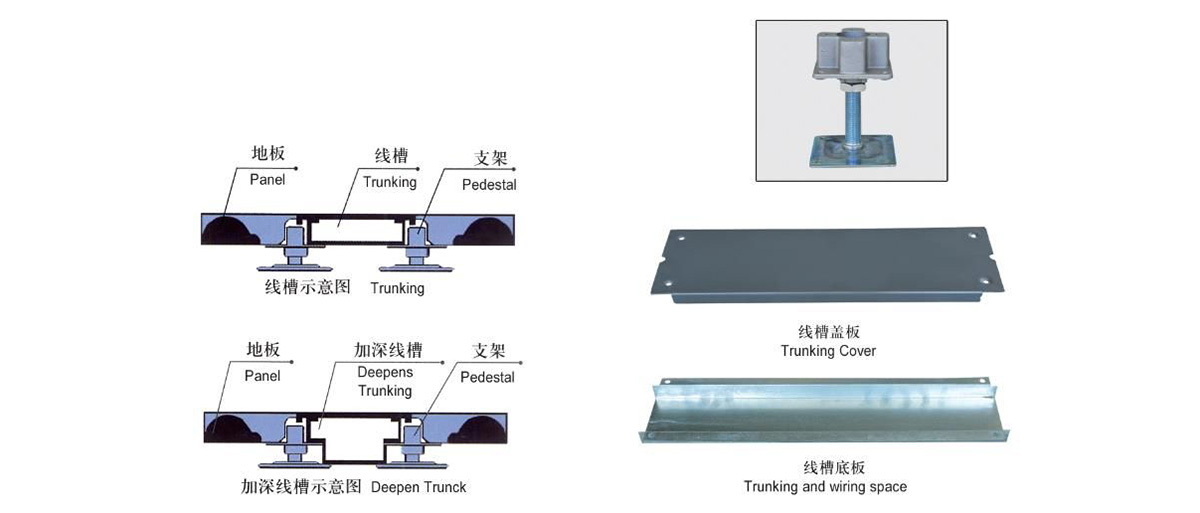

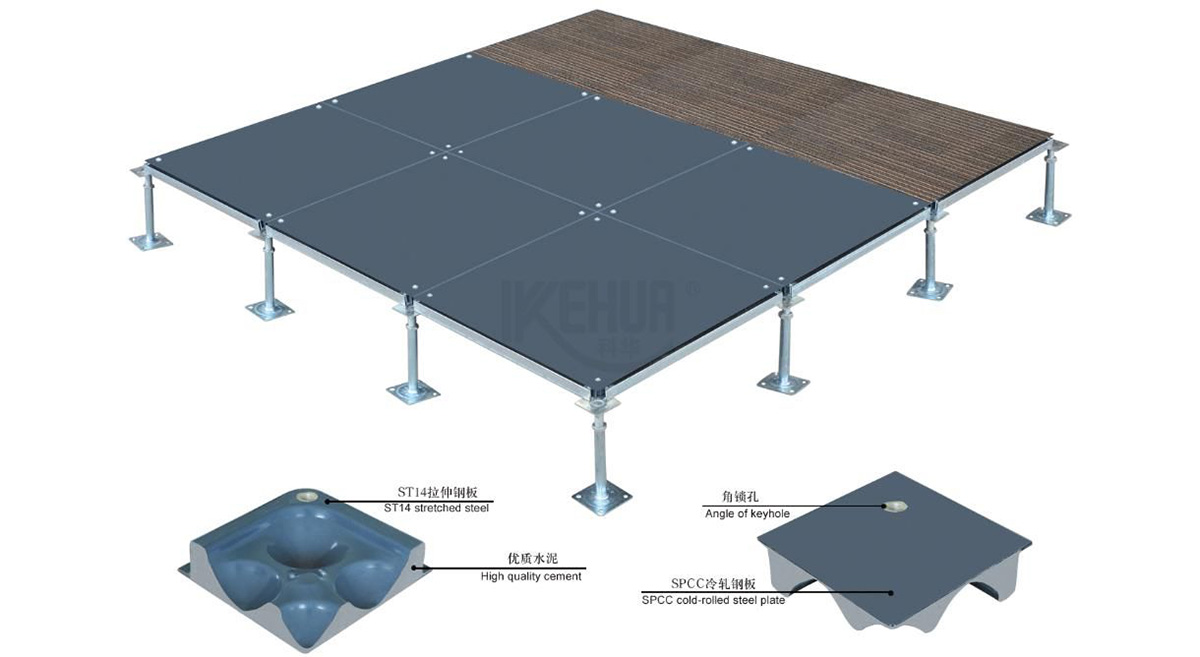

This raised floor is specially designed for easy cable layout in intelligent buildings. The outside of the raised floor is made of high-quality zinc cold steel sheet, the top and the bottom are both superiorly deep-stretching zinc cold steel sheet. Advanced spot welding technical structure is applied to the top and bottom of the raised floor, and in the middle is filled withC lightweight cement of special ingredients developed by KEHUA. In this way, the finished products feature higCh lCoading capacity and durability. The surface of raised floor can be covered with various PVC or fabric carpets. To deal with the wiring problems caused by the growing pipelines in modern intelligent building, this panel can match with movable trunking to lay various types of pipelines so that the strong and weak current can be segregated. After laying on the floor, the trunking cover can be lifted off so that you can lay and maintain various types of pipelines and cables. Easy installation and maintaince.
| Type | Specification |
Concentrated Load(N) | Impact Load(N) | Ultimate Load(N) | Untimate Load(N/m2) | Dynamic Load(N) | Fire Protection | System resistance | ||||
| International | National | LB | N | KG | 10 | 10000 | ||||||
| FS700 | HDG(Q) | 600x600x33 | 700 | 2950 | 318 | 550 | 8850 | 12500 | 2950 | 2255 | A | |
| FS800 | HDG(P) | 600x600x33 | 800 | 3560 | 363 | 670 | 10680 | 16000 | 3560 | 2950 | A | |
| FS1000 | HDG(B) | 600x600x33 | 1000 | 4450 | 453 | 670 | 13350 | 23000 | 4450 | 3560 | A | |
| FS1250 | HDG(Z) | 600x600x33 | 1250 | 5560 | 567 | 670 | 16680 | 33000 | 5560 | 4450 | A | |
